Big Data Stack

Real Impact Analytics

Karim Douïeb

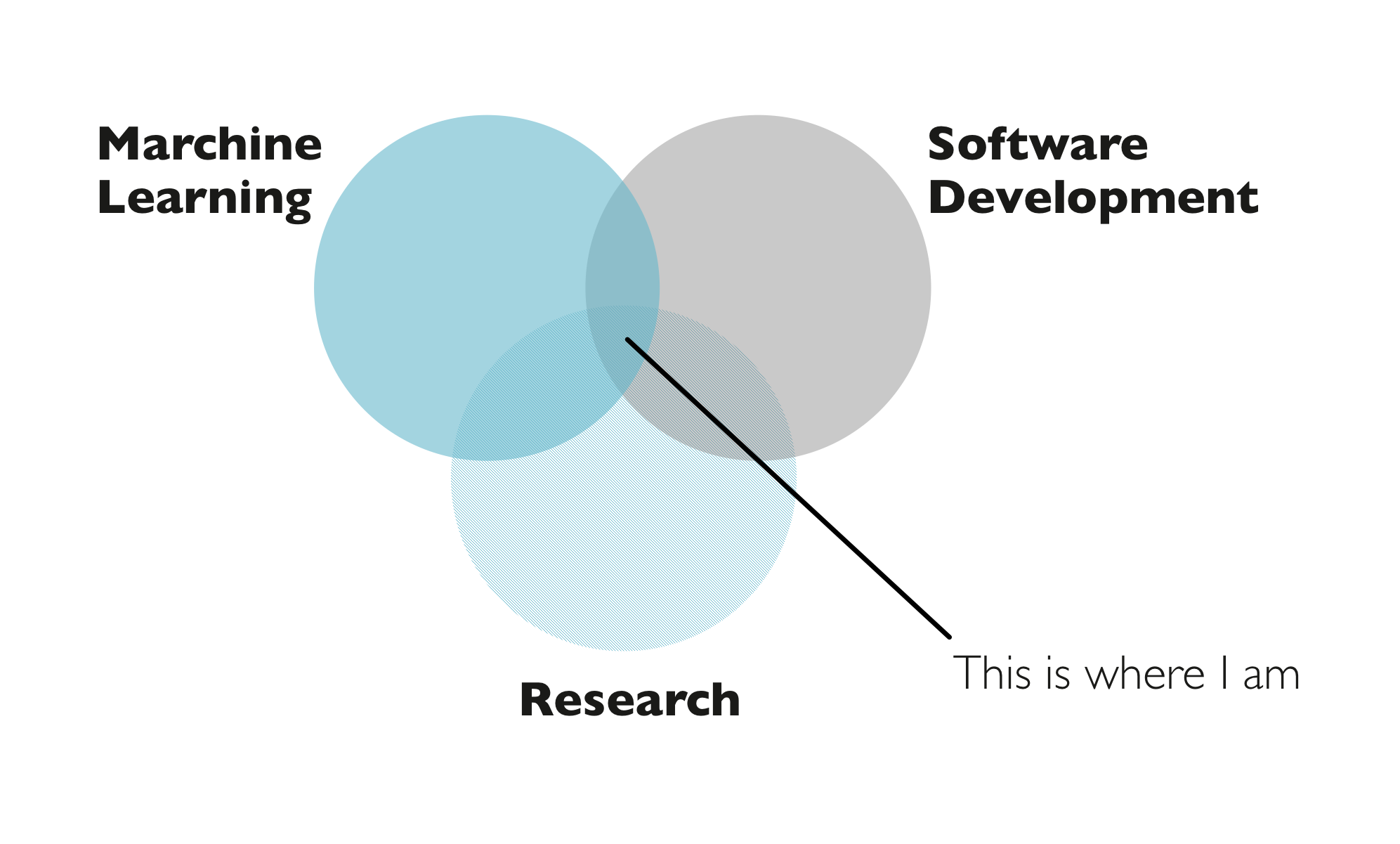

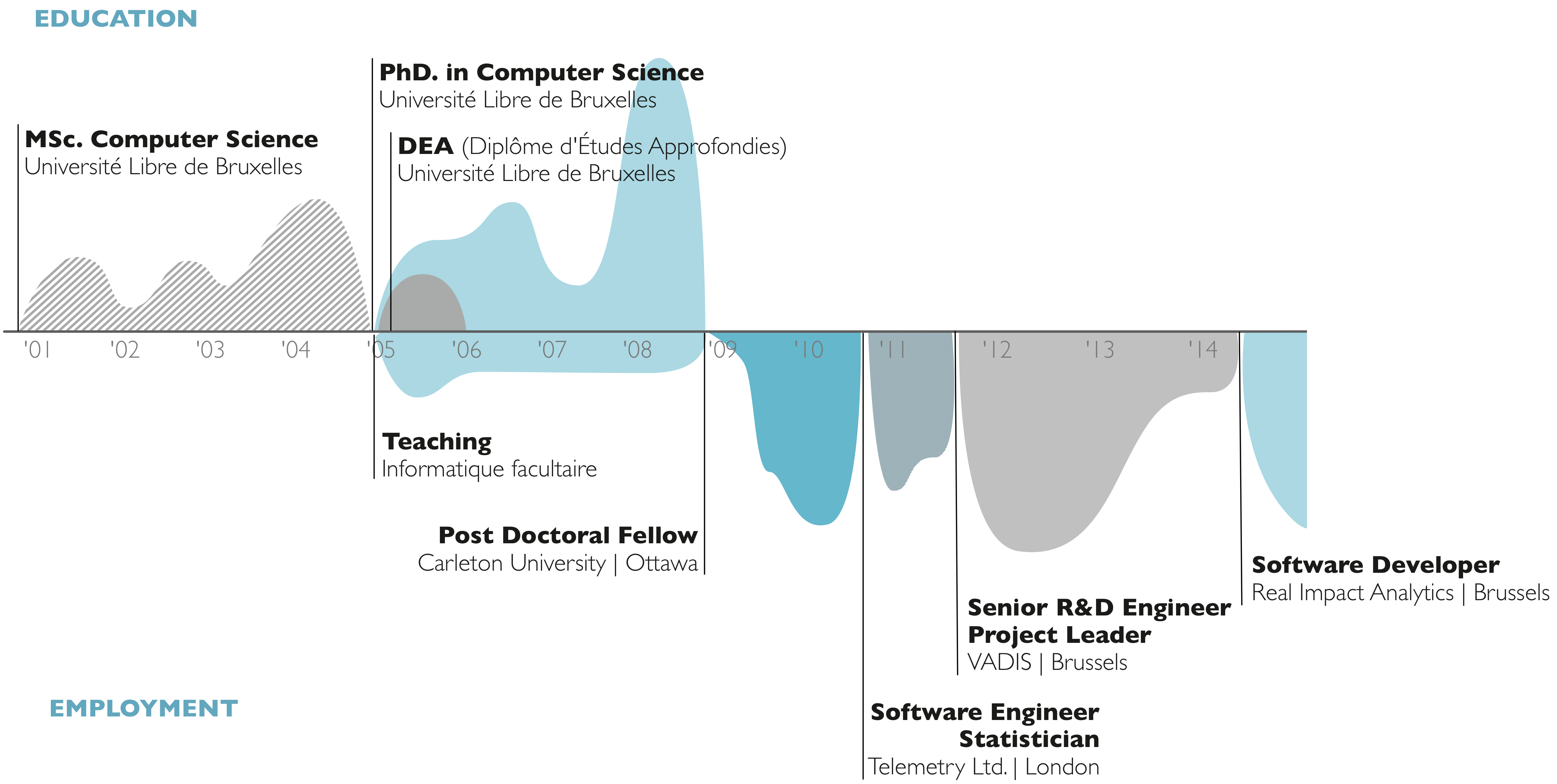

Who am I?

Where do I work?

Missions

Campaign managment Operational optimization
Improve marketing
Strengthen subscriber acquisitions
Acquire competitor market
Increase cross-sales
Reduce churn
Target high value subscribers
A/B test campaign messages
Compute campaign's ROI
Drive field actions
Improve network coverage
Performance tracking
Stock management
Managed services
Data commercialization

Data

Call Detail Record (CDR)
Date — Time — Duration
Billing — Recharge — Money transfer
Social Network
Antenna's geolocalisation
Network information
Data usage — URL — App

Treating telco/banking data of 300,000,000 subscribers daily

Active in 25+ countries

Is this a lot?

4.1% of world population

10% of africa's population


Still Room for growth

Spark

hit refresh if not shown properly

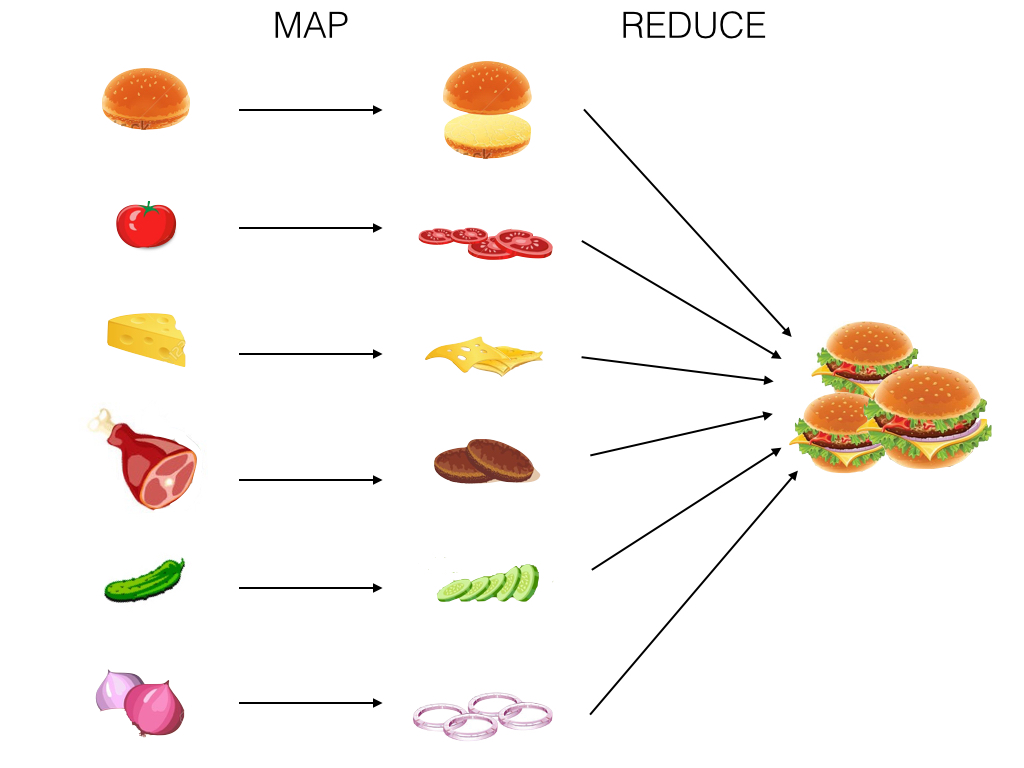

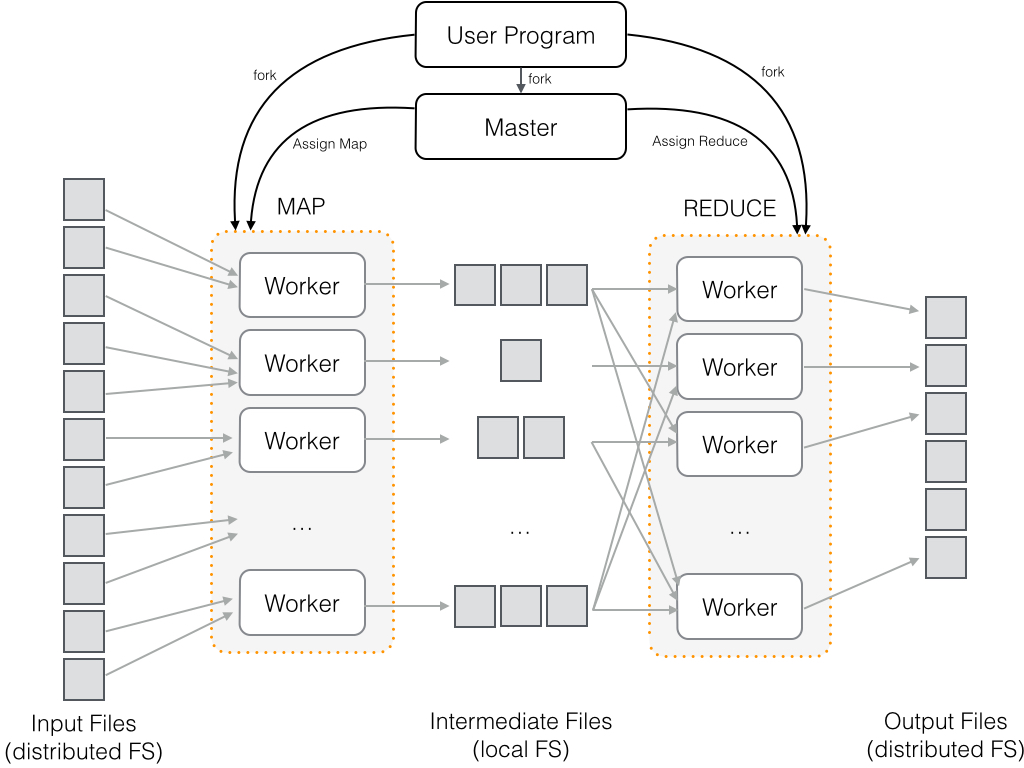

Map Reduce is like making burgers

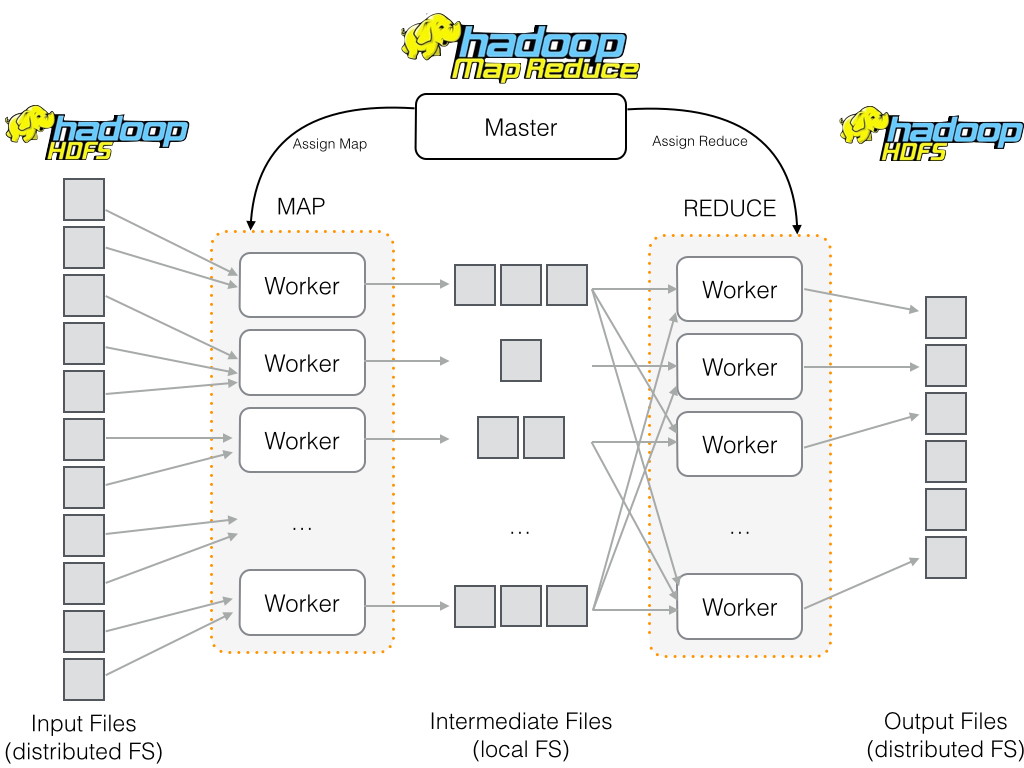

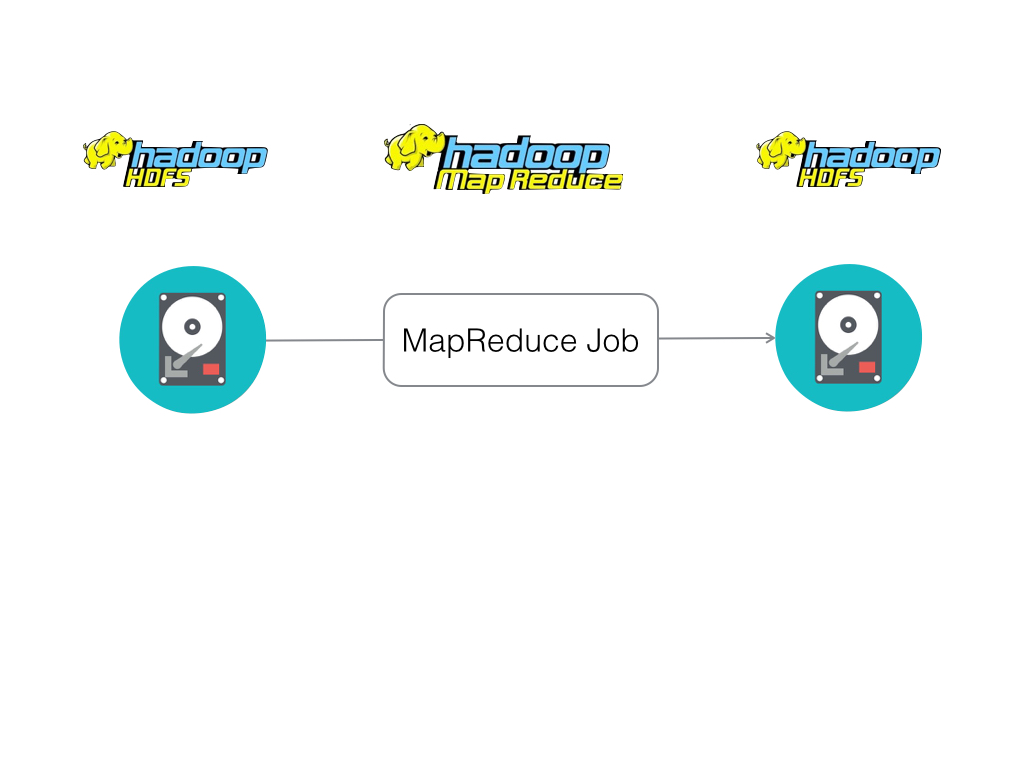

MapReduce data sharing primitive

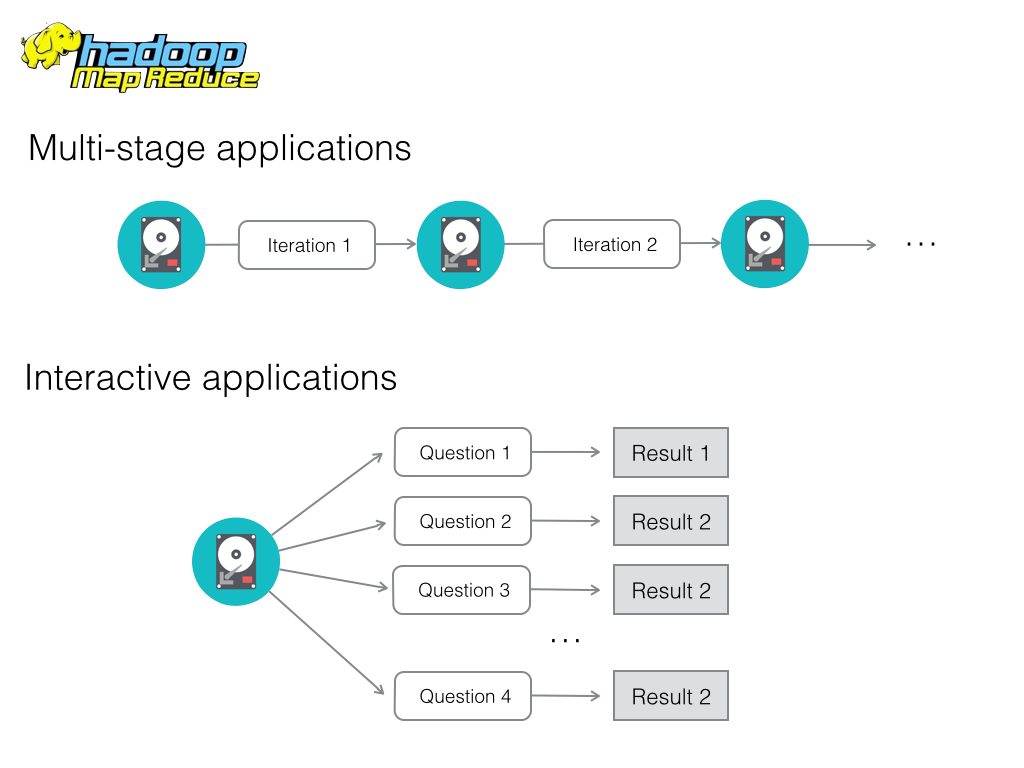

Restricted programming framework

MapReduce tasks must be written as acyclic dataflow programs, i.e. a stateless mapper followed by a stateless reducer, that are executed by a batch job scheduler.
This paradigm makes repeated querying of datasets difficult and imposes limitations that are felt in fields such as machine learning, where iterative algorithms that revisit a single working set multiple times are the norm.”
Zaharia, Chowdhury, Franklin, Shenker, Stoica

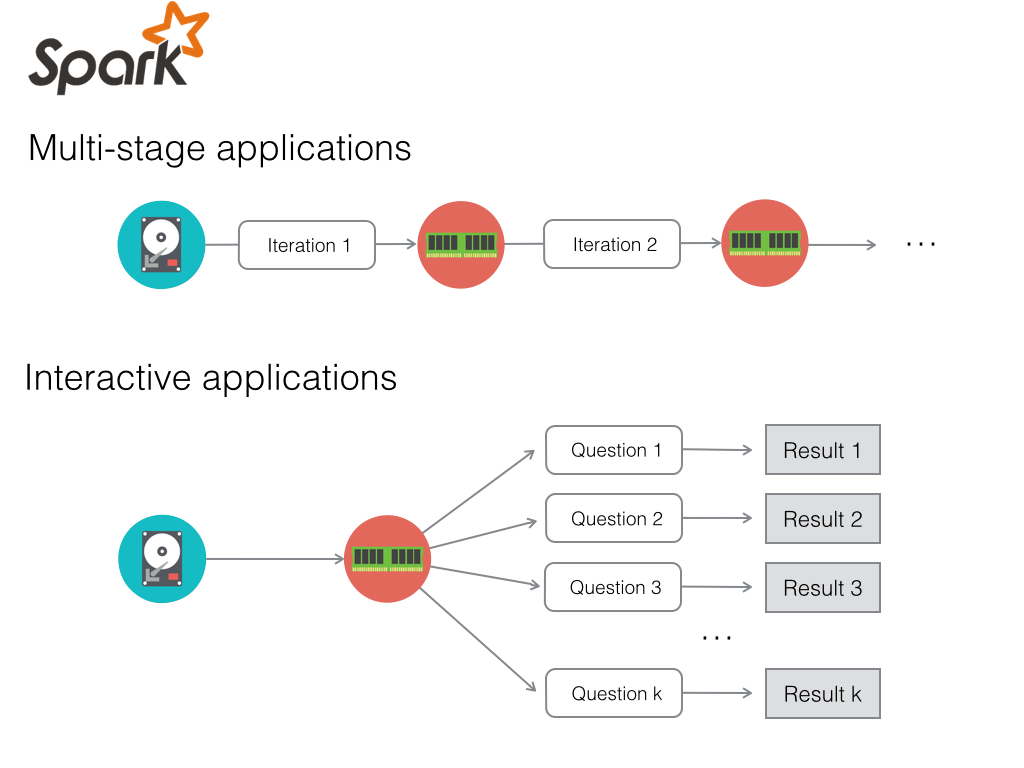

Resilient Distributed Dataset (RDD)

Restricted form of distributed shared memory:
  • Immutable, partitioned data set.
  • Can only be build through coarse-grained deterministic transformations (map, filter, join, …). These are operations that are applied to all of the elements of the data set at once.

Efficient fault recovery using lineage:
  • Remember the graph of transformation applied to each RDD.
  • When is lost simply recompute lost fragment of the execution graph.

TransformationsActions
map
filter
flatMap
join
union
distinct
groupByKey
aggregateByKey
sortByKey
cogroup
sample
intersection
...
reduce
collect
count
first
take
takeSample
takeOrdered
countByKey
foreach
saveAsParquetFile
saveAsTextFile
saveAsObjectFile
...

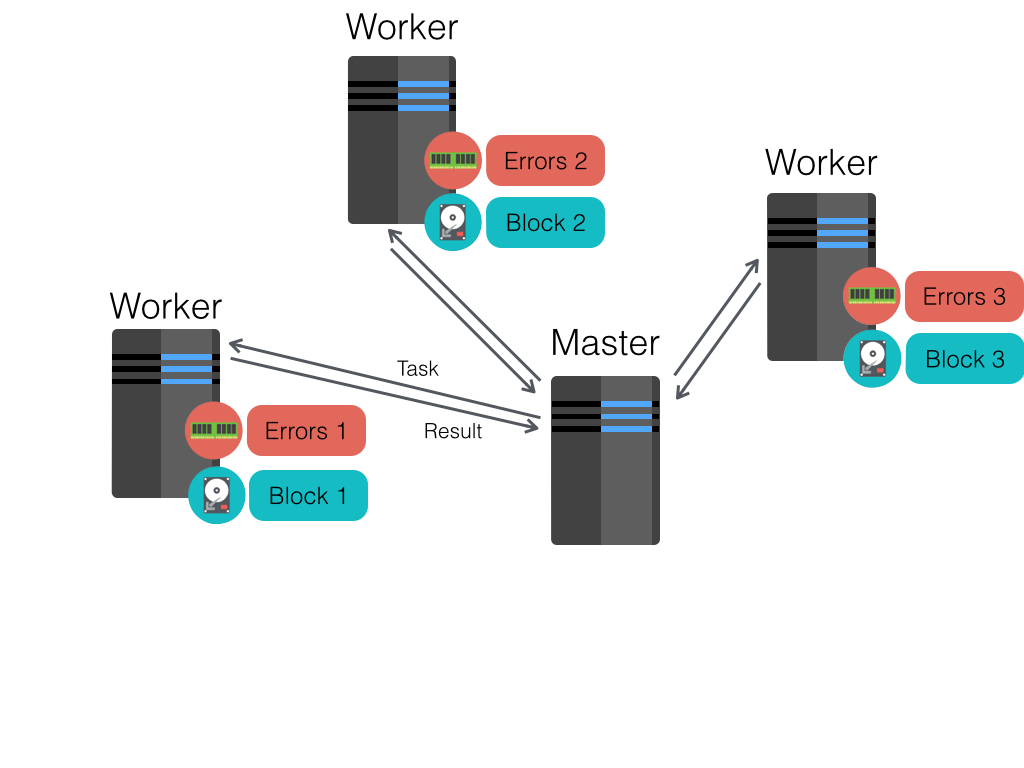

Log Mining example

 val file = spark.textFile("hdfs://...")
 val errors = file.filter(line => line.contains("ERROR"))
 errors.cache()
 // Count errors mentioning MySQL
 errors.filter(line => line.contains("MySQL")).count()
 // Count errors mentioning Windows should be much faster
 errors.filter(line => line.contains("Windows")).count()

Logistic Regression Example

 val points = spark.textFile(...).map(parsePoint).cache()
 var w = Vector.random(D) // current separating plane
 for (i <- 1 to ITERATIONS) {
	 val gradient = points.map(p =>
 		 (1 / (1 + exp(-p.y*(w dot p.x))) - 1) * p.y * p.x
 	 ).reduce(_ + _)
 	w -= gradient
 }
 println("Final separating plane: " + w)

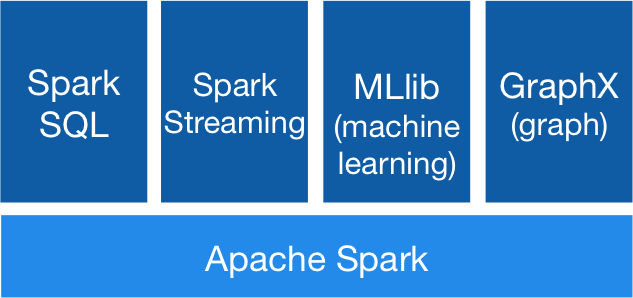

Spark Ecosystem

Spark Drawback

  • Lack of maturity
  • Sometimes less efficient then specialized system
  • Difficult to debug
    • lazyness & optimisation
    • limited monitoring tools

Big Data Real Impact Analytics

  • Basic usage statistic
  • Social communities detection
  • Mobility pattern
  • Behavior prediction
  • Recharge frequency
  • Anomaly detection
  • KPIs GeoMapping

Leveraging anonymized telecom data to fight the Ebola outbreak

4 key actors

  • Mobile Network Operators
  • Health actors
  • Analytics experts
  • Regulators

Objectives

  • Set-up and secure a system for collecting telecom and public health data
  • Analyse mobility paterns and develop epidemiological models to simulate the potential spread paths of the disease
  • Build a platform/tools allowing identification of priority locations for action

Epidemiological fully mixed model

Epidemiological model with mobility componant

Simulation

black Star Glasses image/svg+xml Layer 1

We are hiring (nerds)!
